Podpory rurociągów
Wymiary

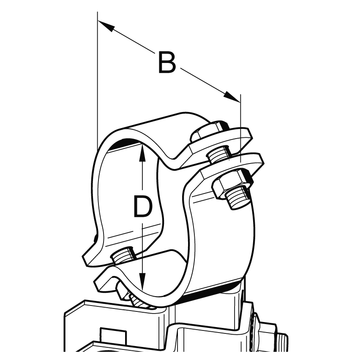

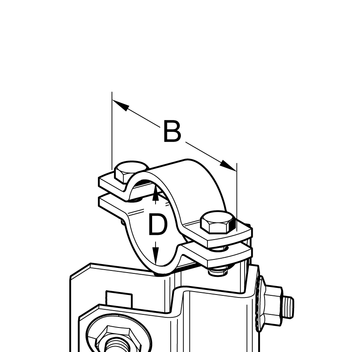

Element bazowy bez izolacji
Rura Śr. nominalna | Rura D | Obejma B [mm] | Obejma Materiał [mm] | Śruby |
---|---|---|---|---|
15 | 22 | 86 | 30 x 5 | M10 x 40 |
20 | 27 | 93 | 30 x 5 | M10 x 40 |
25 | 34 | 102 | 30 x 5 | M10 x 40 |
32 | 43 | 114 | 30 x 5 | M10 x 40 |
40 | 49 | 119 | 30 x 5 | M10 x 40 |
50 | 61 | 136 | 40 x 5 | M12 x 45 |
65 | 77 | 152 | 40 x 5 | M12 x 45 |
80 | 89 | 165 | 40 x 5 | M12 x 45 |
100 | 115 | 165 | 50 x 5 | M12 x 50 |
125 | 140 | 183 | 50 x 5 | M12 x 50 |
150 | 169 | 215 | 50 x 8 | M12 x 55 |
200 | 220 | 252 | 50 x 8 | M12 x 55 |
250 | 273 | 306 | 50 x 8 | M12 x 55 |
300 | 324 | 347 | 60 x 8 | M16 x 60 |
350 | 356 | 375 | 60 x 8 | M16 x 60 |
400 | 407 | 423 | 70 x 8 | M16 x 65 |
500 | 508 | 524 | 70 x 8 | M16 x 65 |
600 | 610 | 626 | 70 x 8 | M16 x 65 |

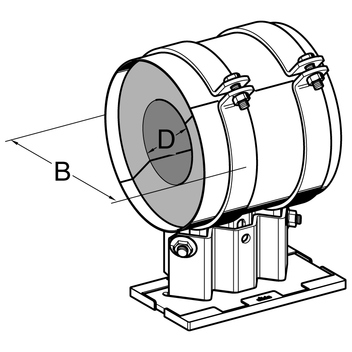

Element bazowy z izolacją
Rura Śr. nominalna | Rura D | Grubość izolacji [mm] | Długość izolacji [mm] | Obejma B [mm] | Obejma Materiał [mm] | Śruby |
---|---|---|---|---|---|---|
25 | 33,7 | 50 | 100 | 180 | 50 x 5 | M12 x 50 |
32 | 42,4 | 50 | 100 | 187 | 50 x 5 | M12 x 50 |
40 | 48,3 | 50 | 100 | 190 | 50 x 5 | M12 x 50 |
50 | 60,3 | 50 | 100 | 199 | 50 x 5 | M12 x 50 |
65 | 76,1 | 60 | 100 | 237 | 50 x 8 | M12 x 55 |
80 | 88,9 | 60 | 100 | 245 | 50 x 8 | M12 x 55 |
100 | 114,3 | 60 | 200 | 278 | 50 x 8 | M12 x 55 |
125 | 139,7 | 60 | 200 | 295 | 50 x 8 | M12 x 55 |
150 | 168,3 | 60 | 200 | 319 | 60 x 8 | M16 x 60 |
200 | 219,1 | 60 | 200 | 363 | 60 x 8 | M16 x 60 |
250 | 273,0 | 60 | 200 | 412 | 60 x 8 | M16 x 60 |
300 | 323,9 | 80 | 200 | 503 | 70 x 8 | M16 x 65 |
